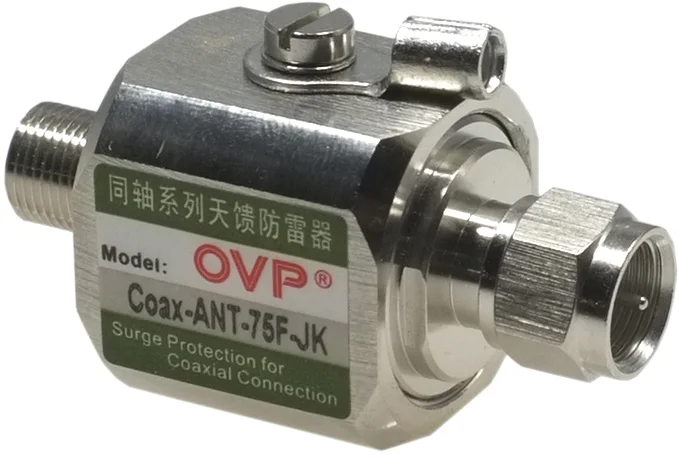

OVP Lightning Protector Feeder Arrester Surge Protective Devices F Antenna Feed Signal Lightning Pr
[4000038538761] Overview: F type skyfeed surge protector is necessary for cable TV, video common cable transmission preventive accessories, the correct selection can provide ideal surge voltage protection, ensure the reliable operation of the system, make it from lightning, induced overvoltage, electrostatic discharge and other surge voltage invasion.The protector USES gas-filled discharge tube to limit the overvoltage of the system. In case of failure, the surge discharger can be removed by unscreasing the screw in the shell, and the failed discharger can be replaced. Main features: 1. Large flow capacity: 2 quick response: 3. Insertion loss and voltage standing wave ratio are small: 4. Low residual pressure, good protection performance: 5. Reliable work:Convenient installation and maintenance. Electrical properties 1. Frequency range: DC-3.0 GHz 2. nominal discharge current: 10KA@8/20s 3. Rated working voltage: 0-48v DC 4. Voltage protection level: <800V @ 1KV/us 5.voltage standing wave ratio: < 1.5@2ghz 6. Insertion loss: < 0.5db @2GHz 7. Response time: <100ns 8. Characteristic impedance: 752 9. Interface form: JK means male female head and KK means double female head Mechanical properties 1. Separation force of inner conductor: > 0.57n 2, external conductor separation force: not applicable 3. Mechanical life: >500 times (12 times per minute) 4, connecting nut torque: recommended 0.68-1.13 n.m. Working environment 1. environment temperature: - 40-85 ℃ 2. Relative humidity: 95% at +40℃ 3. Protection level: IP55(in accordance with IEC60529/EN60529) 4. corrosion resistance: GB/T2423.18 (salt spray test)
US $27.00Time Limited offer 6% US $25.38
